B Series 10.4-Inch CNC Lathe System (Vertical)
300TA3-V
Follow frequency：次
Product type：300T Series
Follow frequency：次
Product type：300T Series
Product Introduction
1. Supports IoT interface for real-time acquisition of machining data, making management more convenient.
2. Supports polar coordinate interpolation: by editing instructions in Cartesian coordinates, it can realize interpolation contour control between linear and rotary axes. Application scenarios: cam machining, outer diameter milling of workpieces, irregular workpiece milling.
3. Supports polygon cutting (flying cutter): Polygon cutting technology utilizes multi-spindle configuration to achieve fast polygon turning, greatly improving machining efficiency.
Hardware Introduction
1. Multi-core CPU architecture, ultra-high computing power platform, smoother operation.
2. Equipped with 2GB of large-capacity storage, ensuring smooth program execution and easy handling of diverse tasks.
3. High anti-interference design, passing 4.5KV EFT test and CE certification.
4. Supports high-stability RS485 communication, making peripheral expansion more reliable.
5. Supports high-speed USB3.0 communication, enabling faster data backup and program import.
6. Equipped with ultra-long power-off retention function, real-time user data recording, stable and reliable.
7. More reasonable key layout and ergonomic design, easier to operate.
8. Pre-reading rate of 1000 Block/s.
9. Maximum supported IO points: 32.
10. Integrated auxiliary panel design with more reasonable key layout.
11. Uses high-performance CPU as the core computing unit of the CNC system, responsible for processing and executing various CNC commands, programs, and data operations. High-performance CPU can quickly respond to and process a large number of command messages, ensuring system real-time performance and efficiency.
12. High-resolution window display, better visual effect.
13. 8-inch operation panel with black membrane design, better protection, stronger durability, easier operation.
14. 10.4-inch and 15-inch color key designs, different function keys distinguished by colors, higher recognition, mechanical keys for easier operation.
15. Rotary switch ratio adjustment, more intuitive and convenient operation.
16. Digital tube displays the current tool number, making it more intuitive and noticeable.
Software (Function) Introduction
1. Linux RT operating system, higher real-time performance and faster speed.
2.Open UI platform and PLC platform provide developers and system integrators with unlimited innovation space and flexibility, promote rapid iteration and deep integration of technology, accelerate the deployment and optimization of intelligent solutions, and ultimately bring users a richer, more efficient, and customized service experience.
3. Flexible permission allocation significantly improves system flexibility and customization, ensuring each user or role gets appropriate access rights and security.
4. Supports graphic simulation, conversational programming, and M-code customization.
5. Supports tool life management and operation recording functions, ensuring accurate tracking and efficient maintenance during production.
6. Fast execution speed: short PLC scan time enables quick response to machining instructions, improving machining efficiency.
7. Supports up to 40 tool compensation groups to meet complex machining requirements and improve production efficiency.
8. Handwheel preview function, single block execution function: during trial machining, the handwheel can be used to control the machine's machining speed and direction. The backtracking function effectively avoids machine collision caused by programming errors.
Special Features
1. Polar Coordinate Interpolation + Cylindrical Interpolation
By editing instructions in Cartesian coordinates, interpolation contour control between linear and rotary axes can be achieved.
Application scenarios: cam machining, outer diameter milling, irregular workpiece milling.
The angular movement of the rotary axis is internally converted to linear axis distance on the outer surface, making it easier to interpolate with other axes in straight lines or arcs. This greatly simplifies programming for cylindrical surface machining.
2. Chip Breaking Function

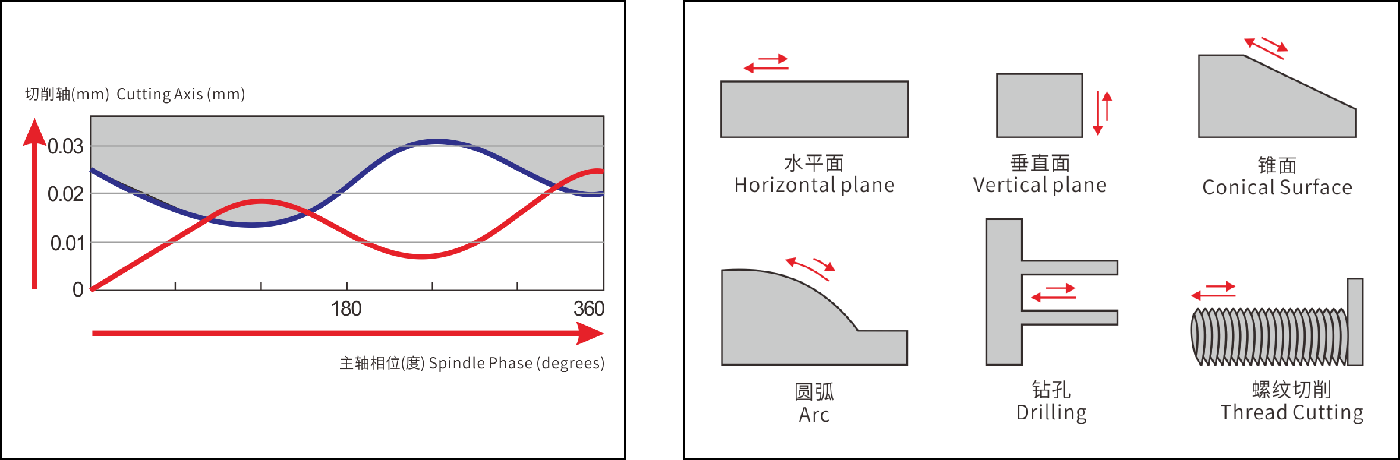

FINGER CNC’s "full-synchronization" chip breaking technology perfectly meets the chip breaking requirements of lathe turning with a low-cost solution.
Under different speeds, consistent chip breaking is achieved. It ensures stable machining and improves machining accuracy. Greatly reduces human intervention and even enables non-intervention operation. Reduces operation difficulty and improves machining efficiency.
Product Series | 300T | 400T | 600T | 800T | ||
Function Selection | 300TA | 400TA | 400TB | 600TC | 800TC | |
Product Model | 300TA1-H | 300TA2-H（V） | 400TA2-H(V) | 400TB2-H(V) | 600TC2-H(V) | 800TC2-H(V) |
300TA3-H（V） | 400TA3-H(V) | 400TB3-H(V) | 600TC3-H(V) | 800TC3-H(V) | ||
300TA4-V | 400TA4-V | 400TB4-V | 600TC4-V | 800TC4-V | ||
? System Specifications | ||||||
Mounting Method | Horizontal | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
Display Screen Size | 7 Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch |
Maximum Number of Axes (Including Spindles) | Standard 5 (Maximum 5) | Standard 6 (Maximum 6) | Standard 9 (Maximum 9) | Standard 9 (Maximum 9) | Standard 11 (Maximum 11) | Standard 20 (Maximum 20) |
Maximum Number of Channels | Standard 1 (Maximum 1) | Standard 1 (Maximum 1) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) |
Maximum Number of Interpolated Axes per Channel | 3 (XZC) | 3 (XZC) | 3（XZC） | 4（XYZC） | 4(XYZC) | 5(XYZAC) |
Maximum Number of Spindles per Channel | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) | Standard 3 (Maximum 3) | Standard 4 (Maximum 4) | Standard 6 (Maximum 9) |
Application Scenarios (Axis Distribution) | Single Channel: | Single Channel: | Single Channel: (XZABC + Axis-Controlled Turret + Positioning Axis) | Single Channel: (XYZABC + Turret Axis + Servo Tailstock + Positioning Axis) | Single Channel: | Dual Channel: |
DA/AD | Optional | Optional | Optional | Optional | Optional | Optional |
Operating System | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT |
Memory | 2GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 8GB | 8GB | 8GB | 8GB | 8GB | 8GB |
Pre-read Block Count | 1000 Blocks/s | 1000 Blocks/s | 2000 Blocks/s | 2000 Blocks/s | 4000 Blocks/s | 8000 Blocks/s |
Maximum Tool Compensation Groups | 40 Groups | 40 Groups | 160 Groups | 160 Groups | 160 Groups | 160 Groups |
Communication | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI |
Standard I/O | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64 / O64 | I64 / O64 | I128 / O128 | I256 / O256 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Bus Servo | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Bus Spindle | Supports | Supports | Supported | Supported | Supports | Supports |
Communication Functions | Modbus TCP, RS232, RS485 | Modbus TCP, RS232, RS485 | ModbusTcp、RS232、RS485 | ModbusTcp、RS232、RS485 | Modbus TCP, RS485, SSI Absolute Encoder (Optional) | Modbus TCP, RS485, SSI Absolute Encoder (Optional) |
? Program Functions | ||||||
Programming Instructions (G-Code) | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards |
Macro Program Programming Standards | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Conversational Intelligence | Supported | Supported | Supported | Supported | Supported | Supported |
Program USB Transfer | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
? Synchronous Axis Control | ||||||
Simultaneous Thread Cutting With Main Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Dual-Channel Spindle Synchronization | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Axis Coupling / Swapping / Hybrid | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
?Robot | ||||||
Robot Independent Channel Control | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Turret | ||||||
Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret |
? High Speed, High Precision | ||||||
Spindle (C) Axis Dynamic Positioning | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) |
Rapid Retraction for Turning/Tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Non-Stop Mode Between Sections | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Supported | Supported | Supported | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) |
? Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Lead Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Hot and Cold Machine Temperature Compensation | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Programmable Tailstock (Servo Tailstock) | ||||||
Programmable Tailstock | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Cutting Functions | ||||||
Parabolic Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Elliptical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Cylindrical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
3D Arc Interpolation | Not Supported | Not Supported | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System |
Polygon Interpolation (Flying Cutter) | Supported | Supported | Supported | Supported | Supported | Supported |
Polar Coordinate Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping | G84/G88 | G84/G88 | G84/G88（Supported(Tapered Tapping)） | G84/G90（Supported(Tapered Tapping)） | G84/G92(Tapered Tapping) | G84/G96(Tapered Tapping) |
Thread Cutting | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning |
Chip Breaking Turning | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) |
? Common Axes | ||||||
Common Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Spindle SSV Control | ||||||
Spindle SSV | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Auxiliary Functions | ||||||
Custom Startup Screen | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom M Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom G Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Mixed Use of Bus Axes and Generic Axes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
I/O Redefinition Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt Axis Machining (Y Interpolation) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Tilted Plane Machining | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Dynamic Hydraulic Control (DHC) Machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Proportional Scaling | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Acceleration/Deceleration Types | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) |
Tool Life Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management |
Protection Functions | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection |
Handwheel Prediction | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function |
Handwheel Interpolation Cutoff | Supported | Supported | Supported | Supported | Supported | Supported |
Restart Function | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart |
Multifunctional Handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphical Simulation | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution |
Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management |
Perpetual Calendar with Machine Lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial Load Monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope Function | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms |
Following Error Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle Speed Arrival Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
? Five-Axis Interpolation | ||||||
RTCP | Not Supported | Not Supported | Not Supported | Optional | Optional | Optional |
? Tool | ||||||
IoT | Optional | Optional | Optional | Optional | Optional | Optional |
Visual Inspection | Optional | Optional | Optional | Optional | Optional | Optional |
