B Series 8-Inch CNC Milling System (Vertical)
600MB2-V
Follow frequency：次
Product type：600M Series
Follow frequency：次
Product type：600M Series
Product Introduction
1. High-definition LCD display
2. Supports 3, 4, and 5-axis CNC milling machine control (XYZ or XYZ + 4th axis or XYZ + 4th and 5th axes)
3. Expandable up to 2 channels and 14 axes
4. High-speed, high-precision algorithms
5. Gantry axis control with gantry axis error protection, error correction, and dual motor backlash elimination
6. Powerful special functions: Includes angle following function that allows the third axis to automatically track 2D curves, providing solutions for tool path curve cutting industries; automatic taper compensation resolves taper issues caused by spindle non-parallelism and worktable XZ non-parallelism, making usage easier and compensation more accurate
7. EtherCAT or MECHATROLINK-III bus control for higher real-time performance and easier maintenance
8. Optional IoT support for real-time acquisition of machining data and more convenient management
Hardware Introduction
1. Multi-core CPU architecture with a high-performance platform for smoother operation
2. Equipped with 2GB storage space, ensuring smooth program operation and easy multitasking
3. High anti-interference design, passed 4.5KV EFT testing and CE certified
4. Supports highly stable RS485 communication for reliable peripheral device expansion
5. Supports high-speed USB 3.0 communication for faster data backup and program import
6. Supports ultra-long power-off data retention, ensuring reliable real-time user data recording
7. Uses high-resolution color display for clearer visuals
8. IO points support up to 64 bits
9. High-performance CPU serves as the core computational unit, responsible for processing and executing CNC instructions, programs, and data calculations, ensuring real-time and efficient system operation
10. Pre-read block number up to 2000 Blocks/s
11. Auxiliary panel with rotary knob for scale switching and digital tube display for current tool number, facilitating easier operation
12. Supports TCP/IP communication protocol
Software (Function) Introduction
1. RT-Linux embedded control system platform
2. Fully compiled execution modules
3. Configurable IoT development platform
4. Remote assistance for fault diagnosis and upgrades
5. Platform-based design concept
6. 64-bit high-speed, high-precision contour control
7. Conventional graphical dialog-based auxiliary program editing
8. Special curve machining: supports constant linear speed machining of parabolic and spline curves for improved surface finish
9. Fast execution speed: short PLC scan time for quick response to machining instructions, improving efficiency
10. Supports gantry axis control, multi-spindle tapping, and master-slave backlash elimination
11. Fast execution speed: short PLC scan time to quickly respond to machining instructions and improve efficiency
12. Optional dual channels for simultaneous multi-process machining
13. Machining accuracy assurance: features automatic speed limiting during arc interpolation to ensure precision; feedforward gain compensation significantly enhances machining accuracy and reduces the impact of following errors; supports G41/G42 tool radius compensation to provide means for higher precision milling
Special Features

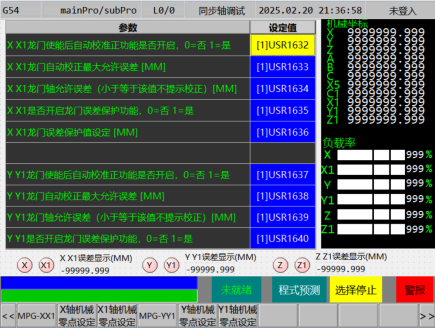

1.Gantry Synchronization Axis Control

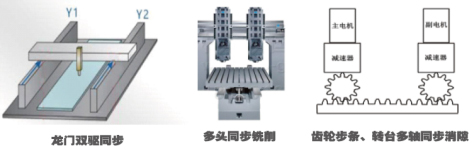

The gantry synchronization axis function enables multiple pairs of feed axes to move with zero mechanical deviation simultaneously. The system quickly processes closed-loop control for synchronized axes, supporting SSI and other absolute serial bus encoders to enhance gantry synchronization performance and efficiency. For machines driven by dual or multiple motors, master-slave tension can be set to effectively eliminate transmission backlash and improve mechanical system rigidity.
2.Dual-Channel Program Management Function

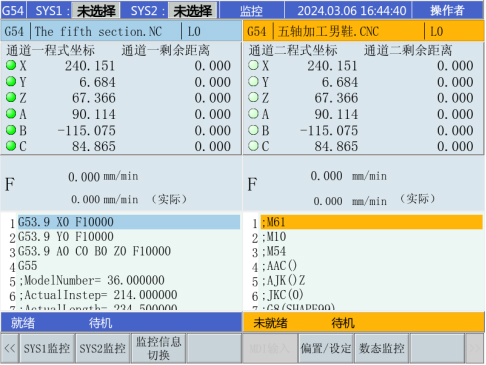

Each channel independently manages its own machining files and edits processes separately. Machining files and variable parameters can be shared, and multiple channels support synchronous waiting with a minimum synchronization cycle of 0.5ms.

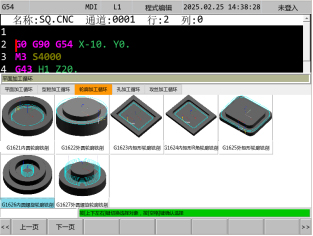

3.Dialog-Based Intelligent Editing Module

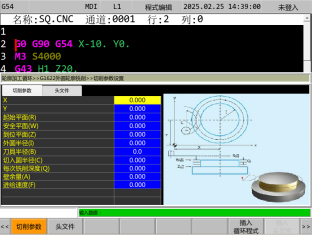

Through dialog-based editing, by inputting corresponding data, the system automatically generates the corresponding machining program. This significantly reduces the operator’s workload, is easy to operate and learn, and features comprehensive functions supporting planar milling, cavity milling, contour milling, drilling, and tapping.
Product Series | 400M | 600M | 800M | |||
Function Selection | 400MA | 600MB | 800MC | |||
Product Model | 400MA1-H | 400MA2-H(V) 400MA3-H(V) 400MA4-V | 600MB2-H(V) | 600MB3-H(V) 600MB4-V | 800MC2-H(V) | 800MC3-H(V) 800MC4-V |
? System Specifications | ||||||
Installation Method | Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
Display Screen Size | 7-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch |
Maximum Number of Axes (Including Spindle) | Standard 6 (maximum 6) | Standard 4 (maximum 6) | Standard 7 (maximum 14) | Standard 7 (Max 14) | Standard 7 (Max 28) | Standard 7 (Max 28) |
Maximum Number of Channels | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 2) | Standard 1 (Max 2) | Standard 7 (Max 4) | Standard 7 (Max 4) |
Maximum Number of Linked Axes per Channel | 4 (XYZA) | 4 (XYZA) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC), with RTCP | 5 (XYZAB or XYZAC or XYZBC), with RTCP |
Maximum Number of Spindles per Channel | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 3) | Standard 1 (Max 3) | Standard 1 (Max 10) | Standard 1 (Max 10) |
Application Scenarios (Axis Distribution) | Economic milling machines, simple milling machines, turret mills, desktop milling machines, drilling and tapping machines: | Machining centers, drilling and tapping machines: | Five-axis five-axis simultaneous machining center (with RTCP), multi-channel milling machine (three channels or more): | |||
DA/AD | Optional Expansion | Optional Expansion | Optional expansion | Optional expansion | Optional Expansion | Optional Expansion |
Operating System | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT |
Memory | 1GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 4GB | 4GB | 8GB | 8GB | 8GB | 8GB |
Lookahead Blocks | 1000 blocks/second | 1000 blocks/second | 2000 blocks/s | 2000 blocks/s | 8000b/s | 8000b/s |
Maximum Tool Compensation Groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups |
Communication/Transfer | USB / RS485 / LAN / WIFI | USB / RS485 / LAN / WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI |
Bus Functions | EtherCAT Bus | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Standard I/O | I16 / O16 | I16 / O16 | I16/O16 | I16/O16 | I16/O16 | I16/O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64/O64 | I64/O64 | I128/O128 | I128/O128 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Absolute Value Function | EtherCAT | MECHATROLINK-III, EtherCAT, MODBUS 485, SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value |
? Program Functions | ||||||
Programming Instructions (G-Code) | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards |
Macro Program Programming Standard | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Interactive Intelligent Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Program Transfer via USB Drive | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
? Compensation Functions | ||||||
Five-Axis Tool Tip Control (RTCP) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Smooth Tool Tip Function (Smooth TCP) | Supported | Supported | Supported | Supported | Supported | Supported |
? Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Dual Motor Drive Backlash Elimination | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Ram Deflection Compensation | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? G-code Instructions | ||||||
High-precision trajectory control mode | Supported | Supported | Supported | Supported | Supported | Supported |
Path smoothing mode | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS curve interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Thread cutting | Supported | Supported | Supported | Supported | Supported | Supported |
Tool offset | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Left-hand tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Semi-automatic fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Multiple sets of high-speed and high-precision parameters | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? High-speed and high-precision | ||||||
Spindle (C) Axis Dynamic Positioning | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) |
Continuous Block Execution Mode | Supported | Supported | Supported | Supported | Supported | Supported |
CONSTANT JERK Control | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Angle Rotation Control | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Radius Speed Limitation | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS Fitting | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Auxiliary Functions | ||||||
Custom startup screen | Supported | Supported | Supported | Supported | Supported | Supported |
Custom M-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Custom G-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Mixed use of bus axes and general-purpose axes | Not Supported | Supported | Supported | Supported | Supported | Supported |
IO redefinition function | Supported | Supported | Supported | Supported | Supported | Supported |
Tilt axis machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt plane machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
DNC machining | Supported | Supported | Supported | Supported | Supported | Supported |
Proportional scaling | Supported | Supported | Supported | Supported | Supported | Supported |
Acceleration and deceleration types | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) |
Tool life management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management |
Protection functions | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection |
Gear prediction | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function |
Gear insertion break detection | Supported | Supported | Supported | Supported | Supported | Supported |
Restart function | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart |
Multi-function handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphic simulation | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution |
Access control management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management |
Perpetual calendar lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial load monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope function | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms |
Following error detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle speed arrival detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
Quick tap retract for tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Diverse tool magazines | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine |
Automatic tool alignment | Supported | Supported | Supported | Supported | Supported | Supported |
? Compound Functions | ||||||
Multi-channel Function | Not Supported | Not Supported | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels |
Multi-spindle Tapping | Not Supported | Not Supported | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles |
Independent Channel Control for Robotic Arm | Not Supported | Not Supported | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code |
? Tool | ||||||
IoT | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
Vision Inspection | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
CAD/CAM | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
