B Series 10.4-Inch CNC Lathe System (Horizontal)
800TC3-H
Follow frequency：次
Product type：800T Series
Follow frequency：次
Product type：800T Series
Product Introduction
1. Five-axis simultaneous turning and milling compound: Control with five degrees of freedom, suitable for machining parts with various shapes and curves.
2. Double turning and milling compound: Multi-process machining of complex workpieces.
3. Double turning + robot: Automatic loading and unloading, improving production efficiency.
Hardware Introduction
1. Featuring a leading multi-core CPU architecture and powerful supercomputing platform, delivering an exceptionally smooth and seamless operation experience.
2. Equipped with 2GB massive storage space, ensuring smooth program execution and effortless handling of diverse tasks.
3. High anti-interference design, passed 4.5KV EFT testing and CE certification.
4. Supports highly stable RS485 communication, providing more reliable peripheral device expansion.
5. Supports high-speed USB3.0 communication for faster data backup and program import.
6. Equipped with ultra-long power-off data retention technology, safeguarding real-time user data recording with enhanced reliability.
7. Supports communication with external devices, such as data transfer with host computers (e.g., PCs) for remote monitoring, program transmission, system upgrades; or networking with other CNC devices to enable coordinated multi-machine operation and centralized management. Communication methods may include wired (Ethernet, serial port, etc.) and wireless (Wi-Fi, Bluetooth, etc.).
8. IO supports up to 128 points, enabling control of more mechanisms.
9. Program pre-reading speed can reach 8000 blocks per second, providing more powerful processing capability.
10. Outstanding performance, supports up to 20 axes control, demonstrating unparalleled control capability.
Software (Function) Introduction
1. Linux RT operating system for higher real-time performance and faster speed.
2. Integrates open UI and PLC platforms, allowing customers to freely customize interfaces and functions for unprecedented personalized operation experience.
3. Flexible permission management significantly enhances system adaptability, enabling each user to customize access rights according to their needs.
4. Supports graphical simulation, conversational programming, and customizable M codes.
5. High execution speed: Short PLC scan time for rapid response to machining commands, improving machining efficiency.
6. Supports hot/cold machine compensation function to ensure more stable machining quality.
7. Supports RTCP function with 3D tool length compensation. The system automatically calculates the tool tip position to ensure the tool tip stays on the machined contour surface.
8. Turning and milling compound function: Five-axis milling in milling mode; in turning mode, the spindle rotates at high speed while the other 4 axes perform simultaneous machining, achieving high efficiency.
9. Optional SSI absolute value communication with high stability and anti-interference capabilities, enabling operation in complex industrial environments.
10. Optional full closed-loop speed control (AB phase feedback, SSI feedback).
Special Features
1. RTCP Function
RTCP (Real-Time Correction Protocol) provides 3D tool length compensation. Customers calculate workpiece contour coordinates in CAM software. The system automatically calculates the tool tip position, ensuring the tool tip stays on the machined contour surface.

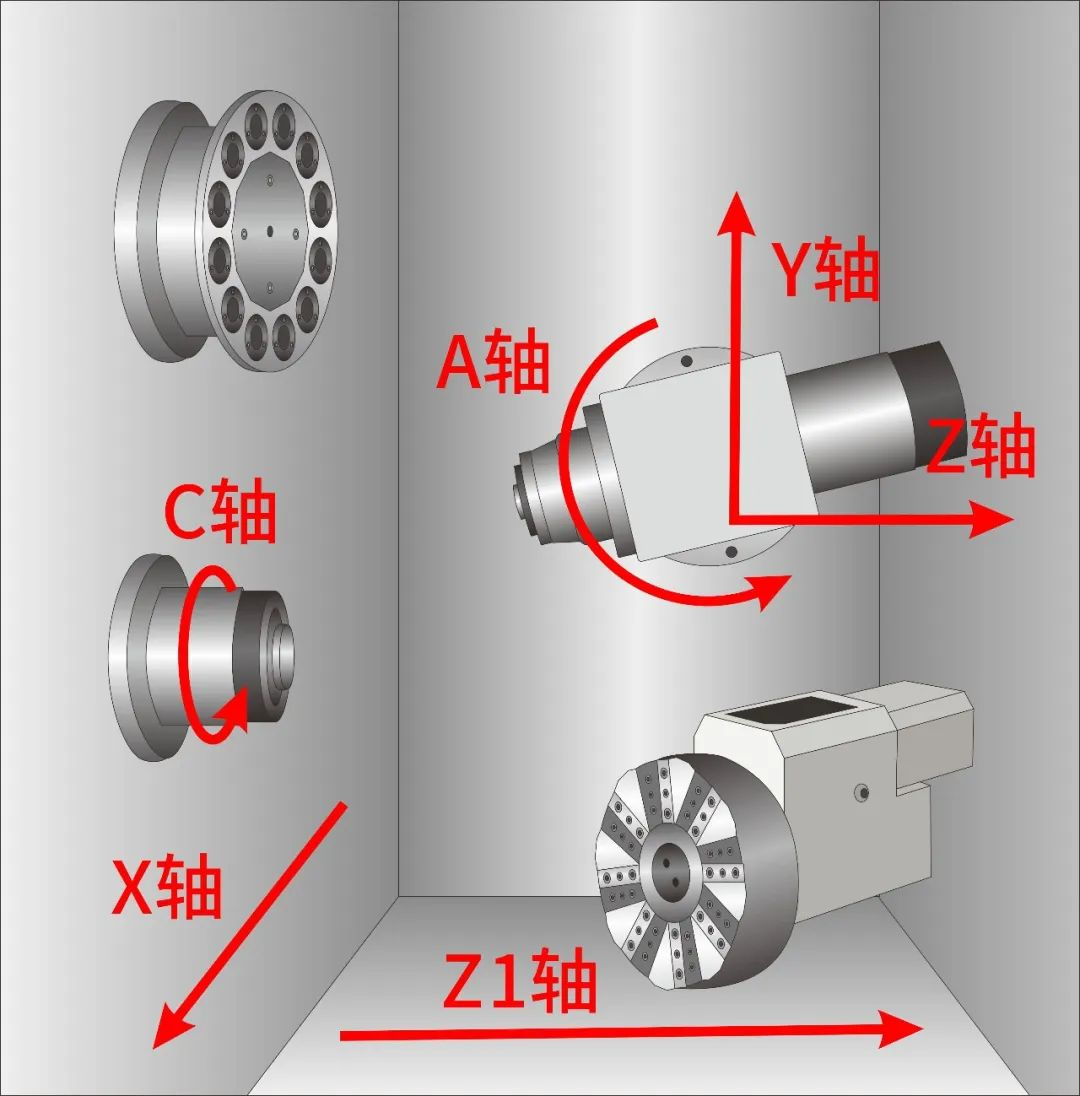

2. Turning and Milling Compound Function
Supports five-axis milling in milling mode. In turning mode, spindle C can switch to high-speed rotation, while the other 4 axes perform 4-axis simultaneous machining for high-efficiency processing.

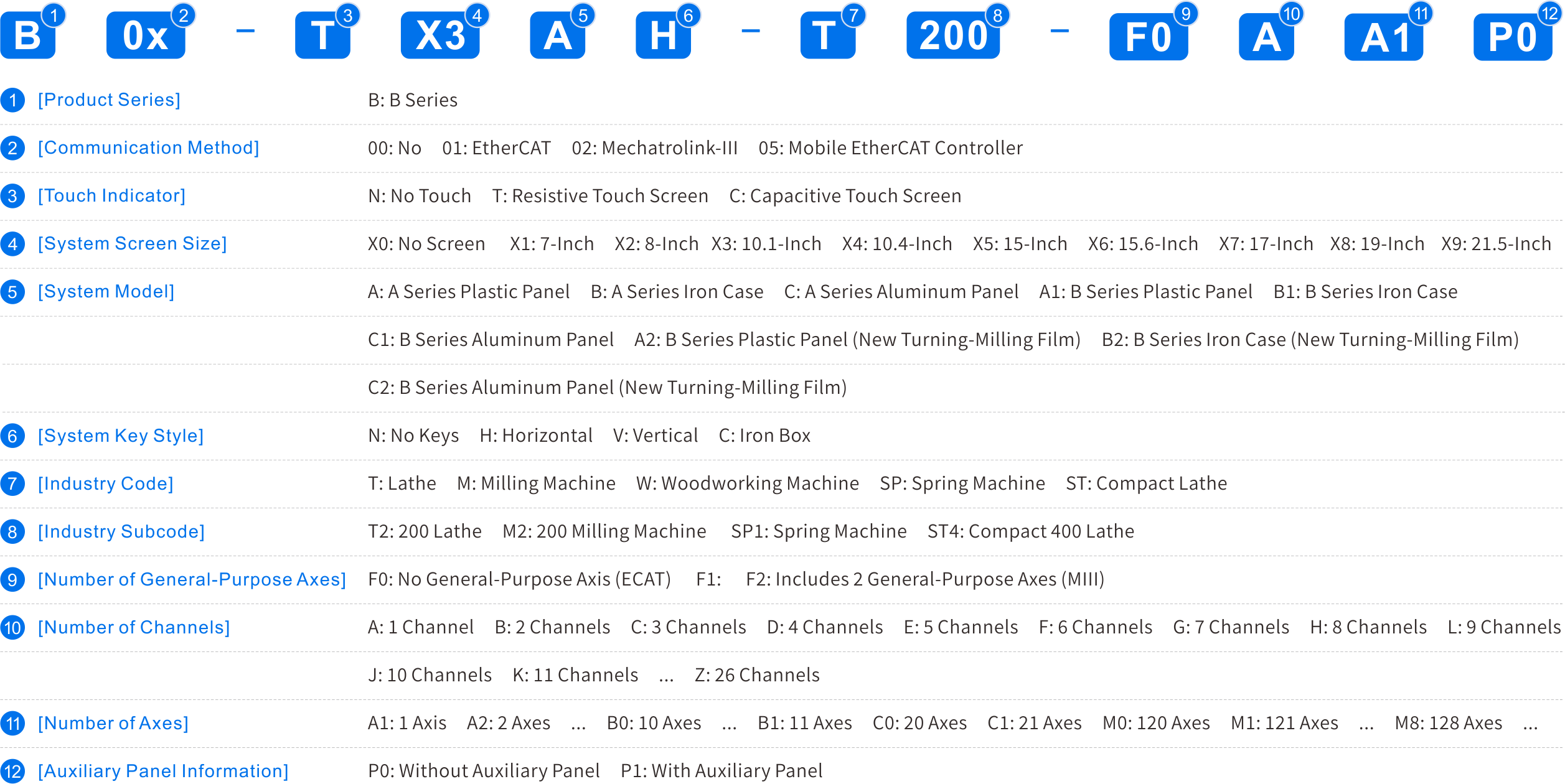

Product Series | 300T | 400T | 600T | 800T | ||
Function Selection | 300TA | 400TA | 400TB | 600TC | 800TC | |
Product Model | 300TA1-H | 300TA2-H（V） | 400TA2-H(V) | 400TB2-H(V) | 600TC2-H(V) | 800TC2-H(V) |
300TA3-H（V） | 400TA3-H(V) | 400TB3-H(V) | 600TC3-H(V) | 800TC3-H(V) | ||
300TA4-V | 400TA4-V | 400TB4-V | 600TC4-V | 800TC4-V | ||
? System Specifications | ||||||
Mounting Method | Horizontal | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
Display Screen Size | 7 Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch |
Maximum Number of Axes (Including Spindles) | Standard 5 (Maximum 5) | Standard 6 (Maximum 6) | Standard 9 (Maximum 9) | Standard 9 (Maximum 9) | Standard 11 (Maximum 11) | Standard 20 (Maximum 20) |
Maximum Number of Channels | Standard 1 (Maximum 1) | Standard 1 (Maximum 1) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) |
Maximum Number of Interpolated Axes per Channel | 3 (XZC) | 3 (XZC) | 3（XZC） | 4（XYZC） | 4(XYZC) | 5(XYZAC) |
Maximum Number of Spindles per Channel | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) | Standard 3 (Maximum 3) | Standard 4 (Maximum 4) | Standard 6 (Maximum 9) |
Application Scenarios (Axis Distribution) | Single Channel: | Single Channel: | Single Channel: (XZABC + Axis-Controlled Turret + Positioning Axis) | Single Channel: (XYZABC + Turret Axis + Servo Tailstock + Positioning Axis) | Single Channel: | Dual Channel: |
DA/AD | Optional | Optional | Optional | Optional | Optional | Optional |
Operating System | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT |
Memory | 2GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 8GB | 8GB | 8GB | 8GB | 8GB | 8GB |
Pre-read Block Count | 1000 Blocks/s | 1000 Blocks/s | 2000 Blocks/s | 2000 Blocks/s | 4000 Blocks/s | 8000 Blocks/s |
Maximum Tool Compensation Groups | 40 Groups | 40 Groups | 160 Groups | 160 Groups | 160 Groups | 160 Groups |
Communication | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI |
Standard I/O | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64 / O64 | I64 / O64 | I128 / O128 | I256 / O256 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Bus Servo | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Bus Spindle | Supports | Supports | Supported | Supported | Supports | Supports |
Communication Functions | Modbus TCP, RS232, RS485 | Modbus TCP, RS232, RS485 | ModbusTcp、RS232、RS485 | ModbusTcp、RS232、RS485 | Modbus TCP, RS485, SSI Absolute Encoder (Optional) | Modbus TCP, RS485, SSI Absolute Encoder (Optional) |
? Program Functions | ||||||
Programming Instructions (G-Code) | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards |
Macro Program Programming Standards | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Conversational Intelligence | Supported | Supported | Supported | Supported | Supported | Supported |
Program USB Transfer | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
? Synchronous Axis Control | ||||||
Simultaneous Thread Cutting With Main Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Dual-Channel Spindle Synchronization | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Axis Coupling / Swapping / Hybrid | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
?Robot | ||||||
Robot Independent Channel Control | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Turret | ||||||
Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret |
? High Speed, High Precision | ||||||
Spindle (C) Axis Dynamic Positioning | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) |
Rapid Retraction for Turning/Tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Non-Stop Mode Between Sections | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Supported | Supported | Supported | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) |
? Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Lead Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Hot and Cold Machine Temperature Compensation | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Programmable Tailstock (Servo Tailstock) | ||||||
Programmable Tailstock | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Cutting Functions | ||||||
Parabolic Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Elliptical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Cylindrical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
3D Arc Interpolation | Not Supported | Not Supported | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System |
Polygon Interpolation (Flying Cutter) | Supported | Supported | Supported | Supported | Supported | Supported |
Polar Coordinate Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping | G84/G88 | G84/G88 | G84/G88（Supported(Tapered Tapping)） | G84/G90（Supported(Tapered Tapping)） | G84/G92(Tapered Tapping) | G84/G96(Tapered Tapping) |
Thread Cutting | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning |
Chip Breaking Turning | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) |
? Common Axes | ||||||
Common Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
? Spindle SSV Control | ||||||
Spindle SSV | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
? Auxiliary Functions | ||||||
Custom Startup Screen | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom M Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom G Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Mixed Use of Bus Axes and Generic Axes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
I/O Redefinition Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt Axis Machining (Y Interpolation) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Tilted Plane Machining | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Dynamic Hydraulic Control (DHC) Machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Proportional Scaling | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Acceleration/Deceleration Types | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) |
Tool Life Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management |
Protection Functions | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection |
Handwheel Prediction | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function |
Handwheel Interpolation Cutoff | Supported | Supported | Supported | Supported | Supported | Supported |
Restart Function | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart |
Multifunctional Handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphical Simulation | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution |
Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management |
Perpetual Calendar with Machine Lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial Load Monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope Function | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms |
Following Error Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle Speed Arrival Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
? Five-Axis Interpolation | ||||||
RTCP | Not Supported | Not Supported | Not Supported | Optional | Optional | Optional |
? Tool | ||||||
IoT | Optional | Optional | Optional | Optional | Optional | Optional |
Visual Inspection | Optional | Optional | Optional | Optional | Optional | Optional |
